Manufacturing capability
Automated glass processing, dedicated fire-rated glass production and in-house test capability in Chengdu.
Integrated glass processing
Xionggang operates more than 100 major machines within a purpose-built plant of approximately 70,000 m². The equipment network covers raw-glass storage, cutting, edging, tempering, laminating, insulating glass unit assembly, ceramic frit processing and finished-product storage.
Five automated CNC lines connect cutting, edging, tempering and IGU production into coordinated workflows. The overall plant has stated processing capacity above 3.5 million m² per year.
Production lines & equipment

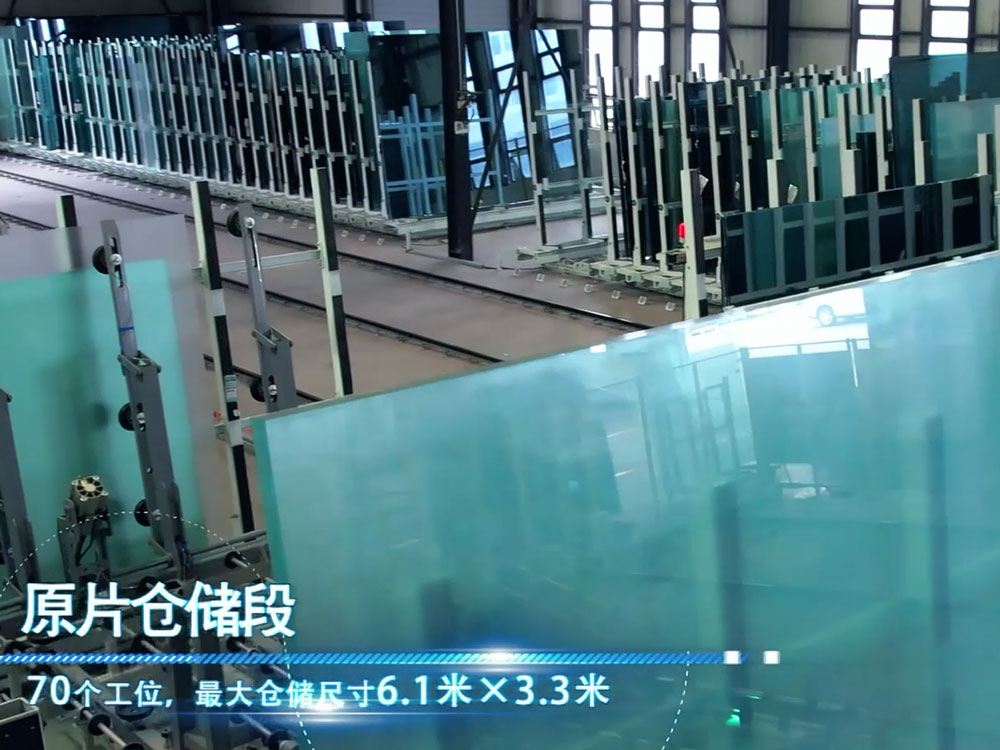

- Intelligent raw-glass storage system
- Five automated CNC lines integrating cutting, edging, tempering and IGU production
- Six Bottero high-precision automatic cutting lines
- Eight automatic edging lines
- One high-stress cyclic tempering furnace for monolithic fire-rated glass
- One laminated non-insulating fire-rated glass line
- One laminated insulating fire-rated glass line
- Four automatic single- and double-chamber tempering furnaces, including curved glass capability
- Two laminated glass lines
- Six Bystronic insulating glass unit lines
- Two interior-glazing production lines
- One automatic shower-glass line
- One waterjet cutting line
- One ceramic frit glass line
- One heat-soak furnace
- One automatic CNC fire-glass test furnace
Factory floor
Selected production equipment
Core equipment supporting repeatable fabrication and production flow.

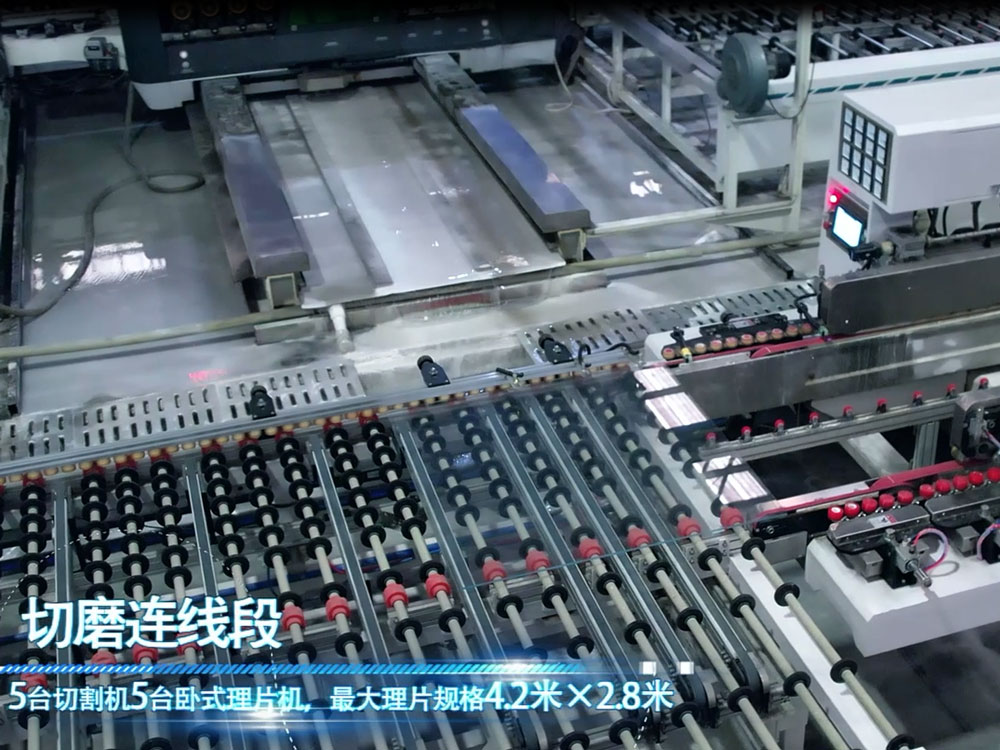

Automated cutting and edging line
High-stress tempering furnace

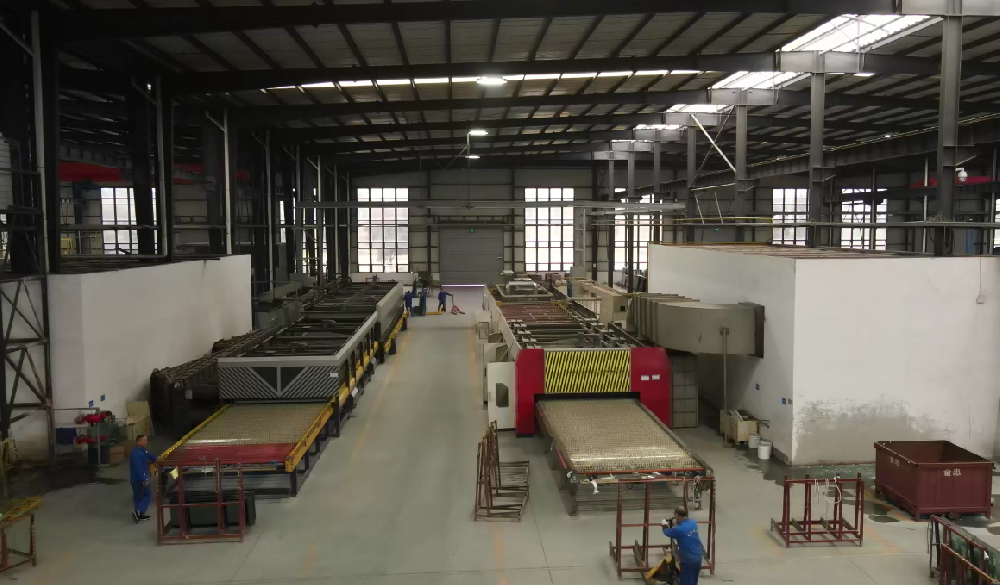

Double-chamber tempering furnace

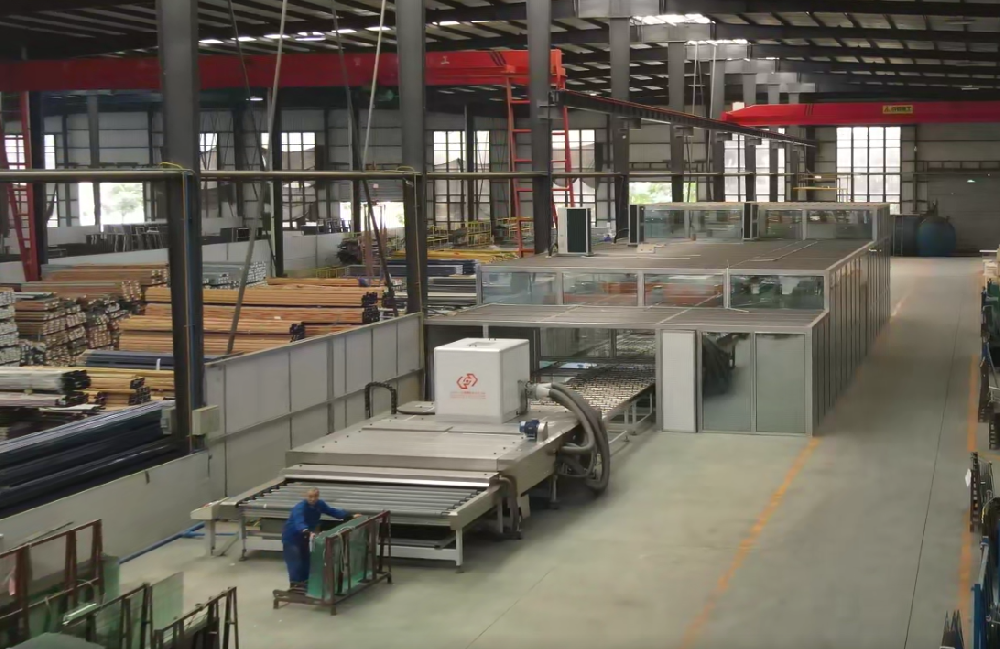

Laminated glass production line

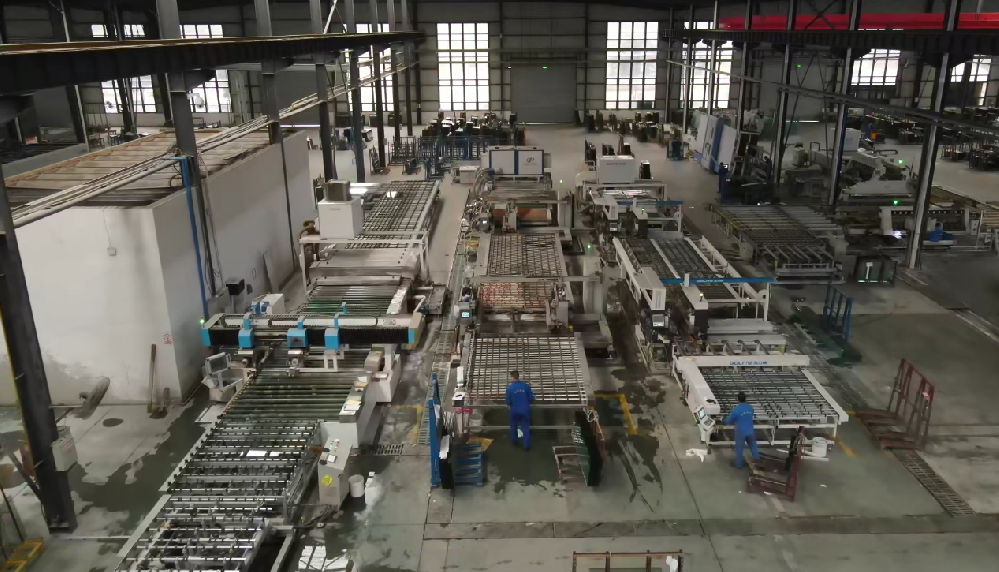

Automatic edging machine

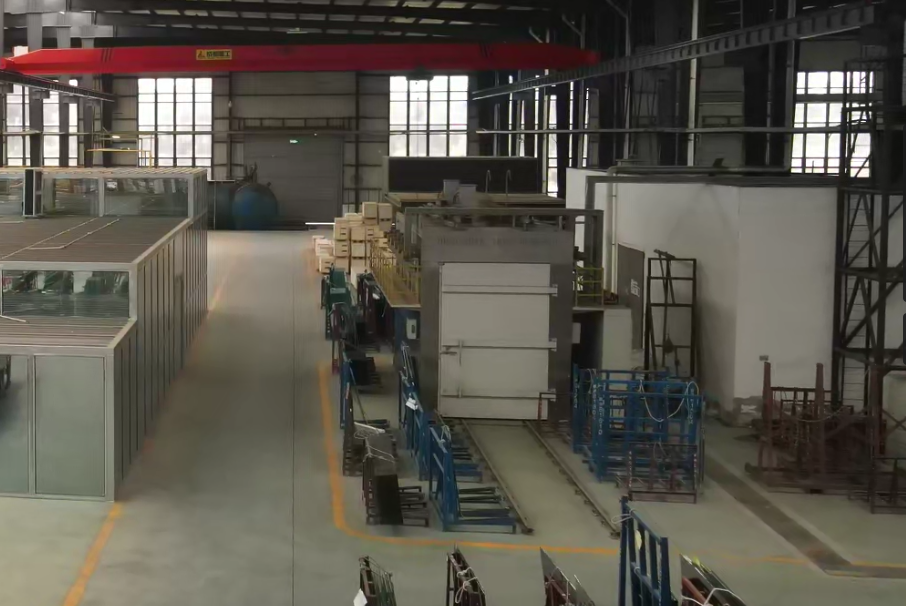

Heat-soak furnace

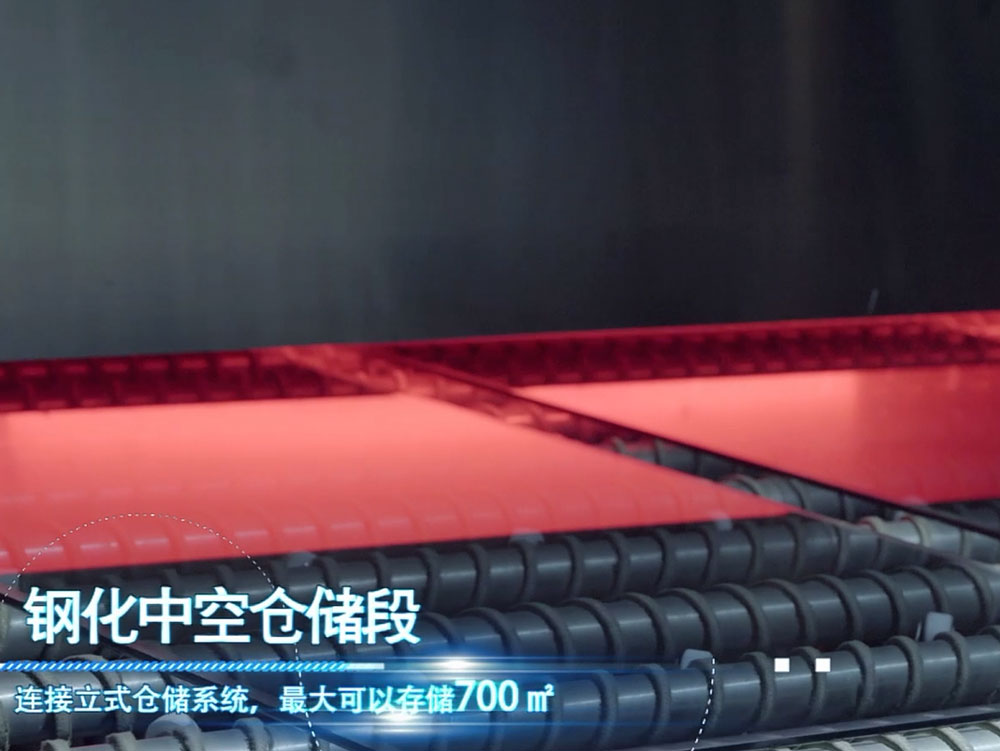

Tempering and IGU storage area
Dedicated line

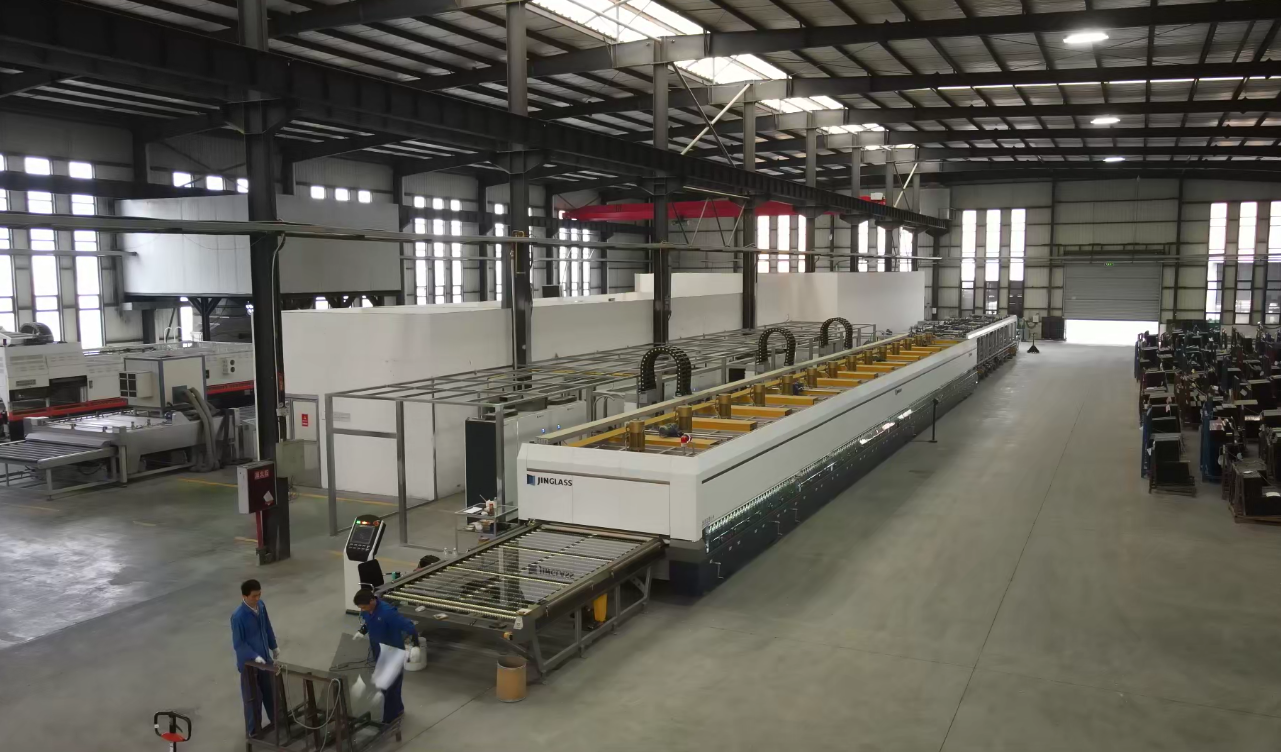

Fire-rated glass tempering
A matrix mid-infrared forced-convection system moves glass in one direction through loading, heating, quenching and unloading stages.
The line processes soda-lime-silicate and borosilicate fire-rated glass, as well as float and Low-E glass for full tempering or heat strengthening. Its continuous flow is designed for consistent stress distribution, optical quality and production throughput.
| Glass thickness | 2.8–12 mm |
|---|---|
| Maximum size | 1,800 × 3,500 mm |
| Minimum size | 300 × 400 mm |
| Approx. daily capacity, 6 mm clear glass | 10,000 m² |
| Approx. daily capacity, 6 mm soda-lime-silicate fire-rated glass | 8,000 m² |
| Approx. daily capacity, 6 mm borosilicate fire-rated glass | 6,000 m² |
| Tempered surface stress | 90–110 MPa |
| Heat-strengthened surface stress, 5–12 mm | 40–52 MPa |
| Stress uniformity | ≤13 MPa tempered; ≤7 MPa heat-strengthened |
| Fragmentation at 90–110 MPa | 40–90 particles per 50 × 50 mm |
Verification
In-house fire test centre
The computer-controlled burn-test furnace uses a Siemens control system to collect temperature, pressure and real-time test data.

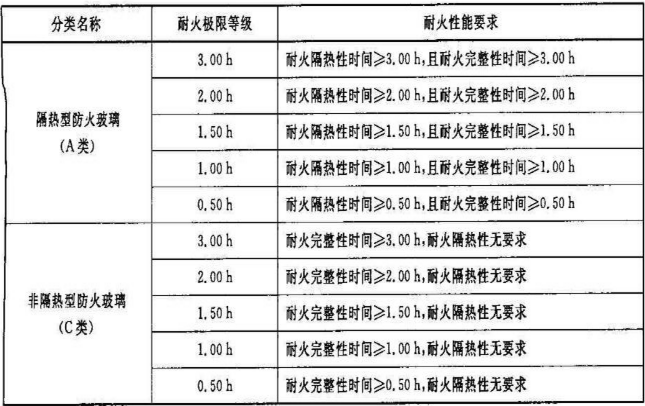

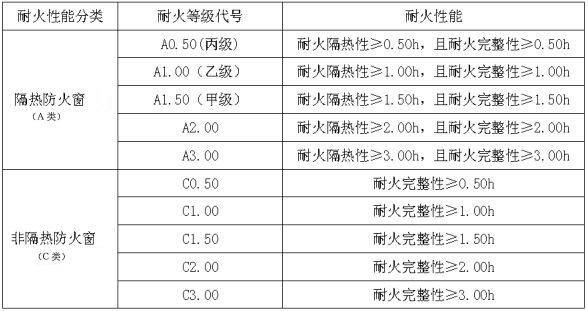

The centre measures fire integrity, thermal insulation and fire-resistance duration for monolithic and laminated fire-rated glass, Class A insulating products and Class C non-insulating products.
Test references
- GB/T 9978.1-2008 — method aligned with ISO 834-1:1999
- GB 15763.1-2009 — safety glazing materials in building, fire-resistant glass
- GB/T 12513-2006 — fire-resistance test methods for glazed elements
Fire-resistance durations assessed: 30, 60, 90, 120 and 180 minutes.
